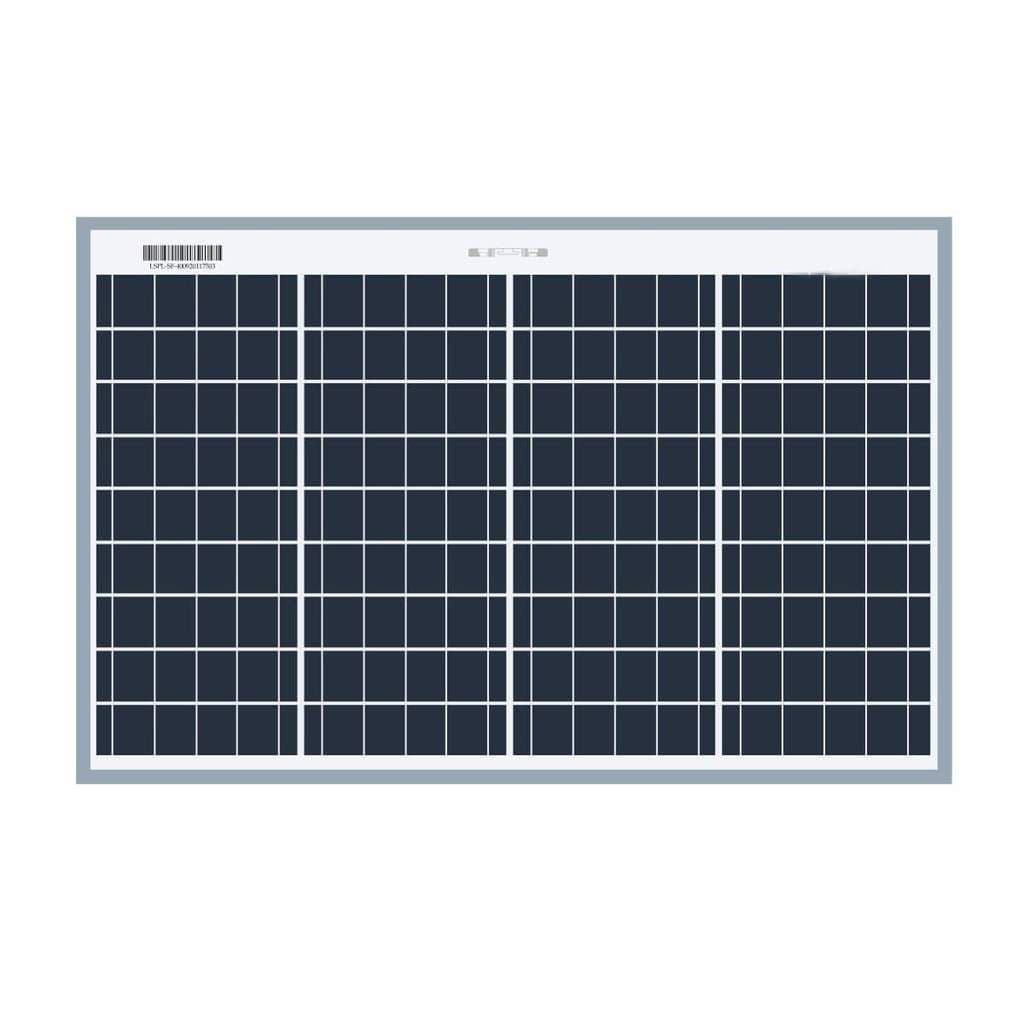

Solar Panel 100 Watt 12 Volt
SKU: TTSP100W12V
Product Overview
Descriptions Output Power 100 Watts Operating Voltage 12 Volt Panel Technology Poly Crystalline Manufacturer warranty 5 years on Manufacturing defects Performance Warranty 25 Years Technical Details Maximum power (Pmax) 100 W Open circuit voltage (Voc) 22.32 volts Short circuit voltage (Lsc) 5.88 amps Voltage at Pmax (Vmp) 18.1 volts Current at Pmax (lmp) 5.54 amps No. of cells 36 Shipping Details Dimensions L x W x H 1010x 665 x 35 mm
Technical Specifications
| Output Power | 100 Watts |
| Operating Voltage | 12 Volt |
| Panel Technology | Poly Crystalline |
| Manufacturer warranty | 5 years on Manufacturing defects |
| Performance Warranty | 25 Years |
| Maximum power (Pmax) | 100 W |
| Open circuit voltage (Voc) | 22.32 volts |
| Short circuit voltage (Lsc) | 5.88 amps |
| Voltage at Pmax (Vmp) | 18.1 volts |
| Current at Pmax (lmp) | 5.54 amps |
| No. of cells | 36 |
| Dimensions L x W x H | 1010x 665 x 35 mm |
Warranty
5 years
